6.5 inch midrang speaker professional audio speaker pa speaker 6.5

Product Categories
Guangzhou Huiyin Audio Co., Ltd.
Contact Now

6.5 inch midrang speaker professional audio speaker pa speaker 6.5

  • 1
  • 2

Place of Origin : Guangdong, China

Brand Name : HYYX

Model Number : HYW-650-025

Certification : ce

Supply Ability : 10000 Piece/Pieces per Week

Packaging Details : 1. Inside + outside strong double boxes 2. Customized

MOQ : 10 Piece/Pieces

Price : $15.00 - $22.00 / Piece

Warranty : 3months-1year

Customized : yes

Dimension : 6.5 inch

Power Supply Mode : other

Storage : NO

SNR : NO

Output Power : NO

Connection Type : other

Shell Material : metal

Format : NO

The body material : metal

radio function : no

Product Name : 6.5 inch midrange speaker

Sensitivity : 93dB

Frequency Response : 100Hz-5KHz

Nominal Impedance : 8 ohm / 4ohm

Size : 8/10/12/15/18/21 Inch Optional

Rated Power : 200W

Cone material : Paper

Surround material : Cloth

Magnet material : Ferrite

Voice coil diameter : 50mm/2 inch

Port : Huangpu, Nansha

Contact Now

Product Description
6.5 inch midrang speaker professional audio speaker pa speaker 6.5
Specification


Features :

- 6.5 inch midrange speakers for professional audio
- 93dB sensitivity 1W/1M
- 200W RMS , 500W Max power handling

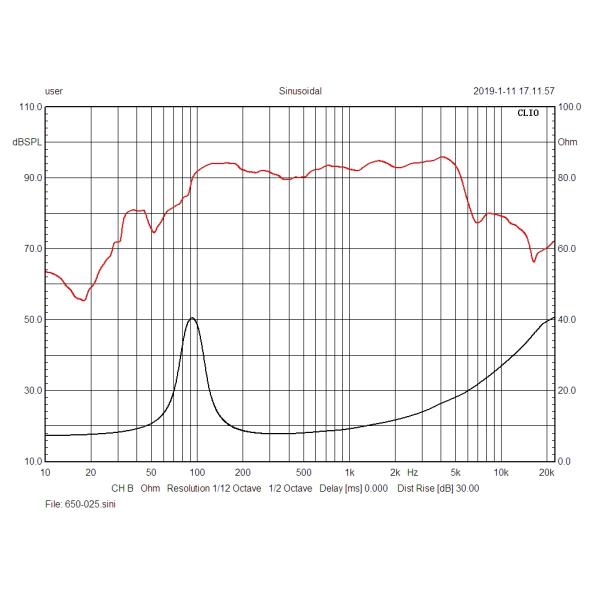

- 100hz-5khz Frequency response
- Ferrite magnet
- 2 inch/ 50mm copper voice coil
Speccification :
Specification
Nominal diameter
160/6.5
mm/inch
Nominal impedance
8/4
ohm
Min impedance
5.2/3.6
ohm
Frequency response
100-5k
Hz
Magnet material
Ferrite
Sensitivity (1w/1m)
93
dB
RMS power handling
200
Watts
Continuous power handling
400
Watts
Voice coil diameter
50/2
mm/ inch
Winding material
Copper
Cone material
Paper
Surround material
Cloth
T/S Parameter
Fs
92.5
Hz
Re
5.2
Ω
Qes
0.69
Qts
0.62
Qms
6.16
Vas
3.4
L
Rms
2.2
kg/s
Cms
0.12
mm/N
Mms
20.8
gr
BI
10.6
N/A
Rp
41.4
Ω
Lp
11.0
mH
Cp
367.1
uF
Le
0.5
mH
Xmax
6
mm
Mounting information
Overall diameter
162/6.4
mm/inch
Bolt Circle diameter
121/4.88
mm/inch
Baffle Cutout diameter
145/5.7
mm/inch
Depth
86/3.38
mm/inch
Flange thickness
8/0.31
mm/inch
Shipping information
Net weight
2.6KG
KG
Shipping weight
3.2KG
KG
Shipping box
200x200x110
mm
